Gate Hardware

Trade-grade hinges for timber, metal and pool gates — stocked for builders, fabricators and hardware resellers. Select a hinge type below for applications, sizes and finish options.

Strap hinge on timber door Weld-on metal gate hinge
Heavy strap hinge Pivot hinge set
T-hinge on garden gate Galvanised hinge detail
Self-closing spring hinge Trade hinge hardware

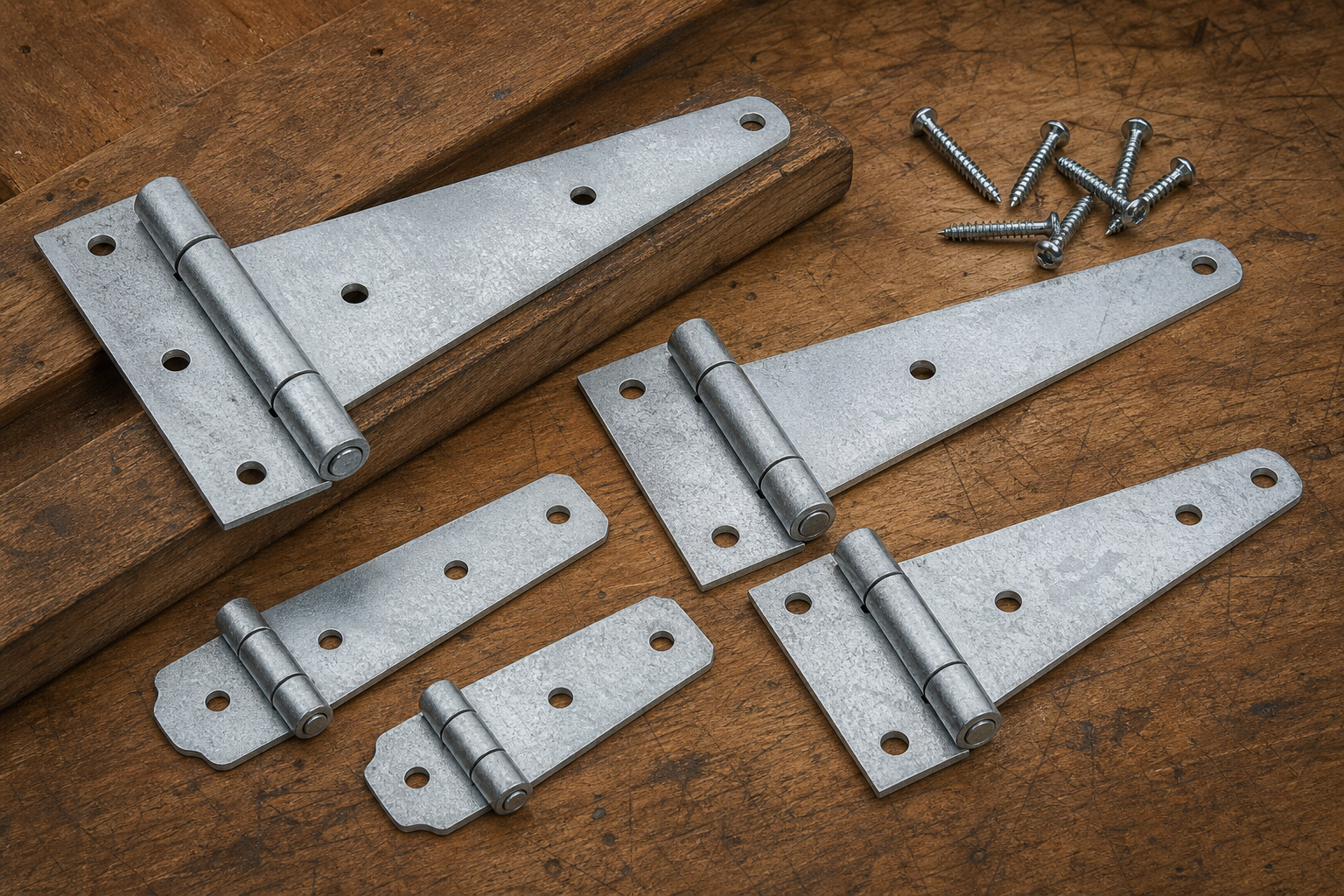

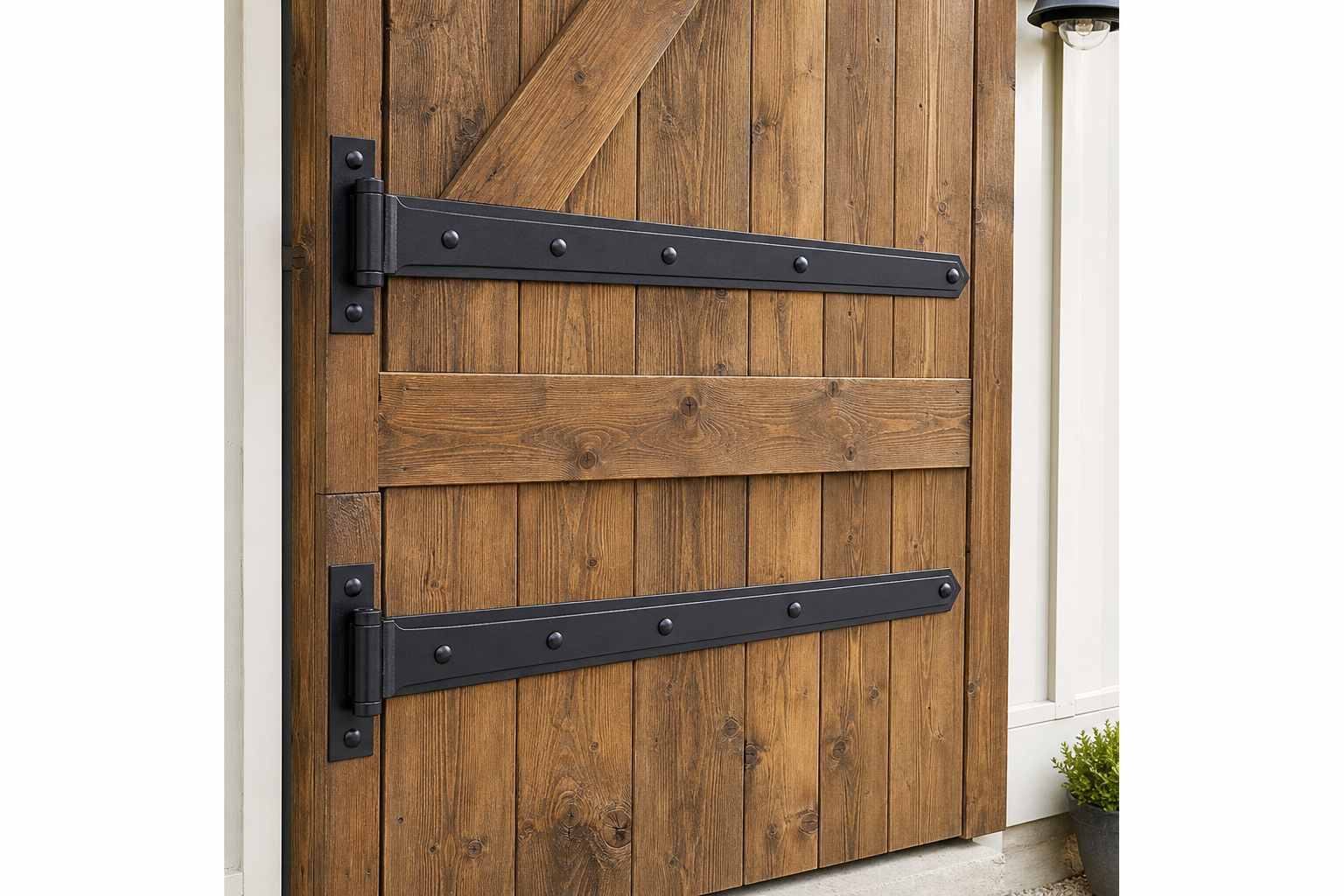

  • Heavy-duty strap hinges for timber doors, shed doors and farm gates.
  • Long strap spreads weight evenly across the full door or gate frame.
  • Light, medium and heavy strap lengths from 200 mm to 750 mm.
  • Available in hot-dip galvanised, black powder coat and stainless steel.

Applications

  • Timber shed, barn and utility doors
  • Residential and rural driveway gates
  • Inward and outward opening installations

Typical sizes

  • Light strap: 200–300 mm
  • Medium strap: 350–450 mm
  • Heavy strap: 500–750 mm
HDG Black powder coat SS 304 Mild steel

Supply: Singles, trade packs (2/3/4 pairs) and bulk cartons for repeat orders.

T-hinge for side gate Gate installation
Heavy strap hinge Weld-on hinge
Pivot hinge set Galvanised hinge detail
Spring-loaded hinge Trade hinge hardware

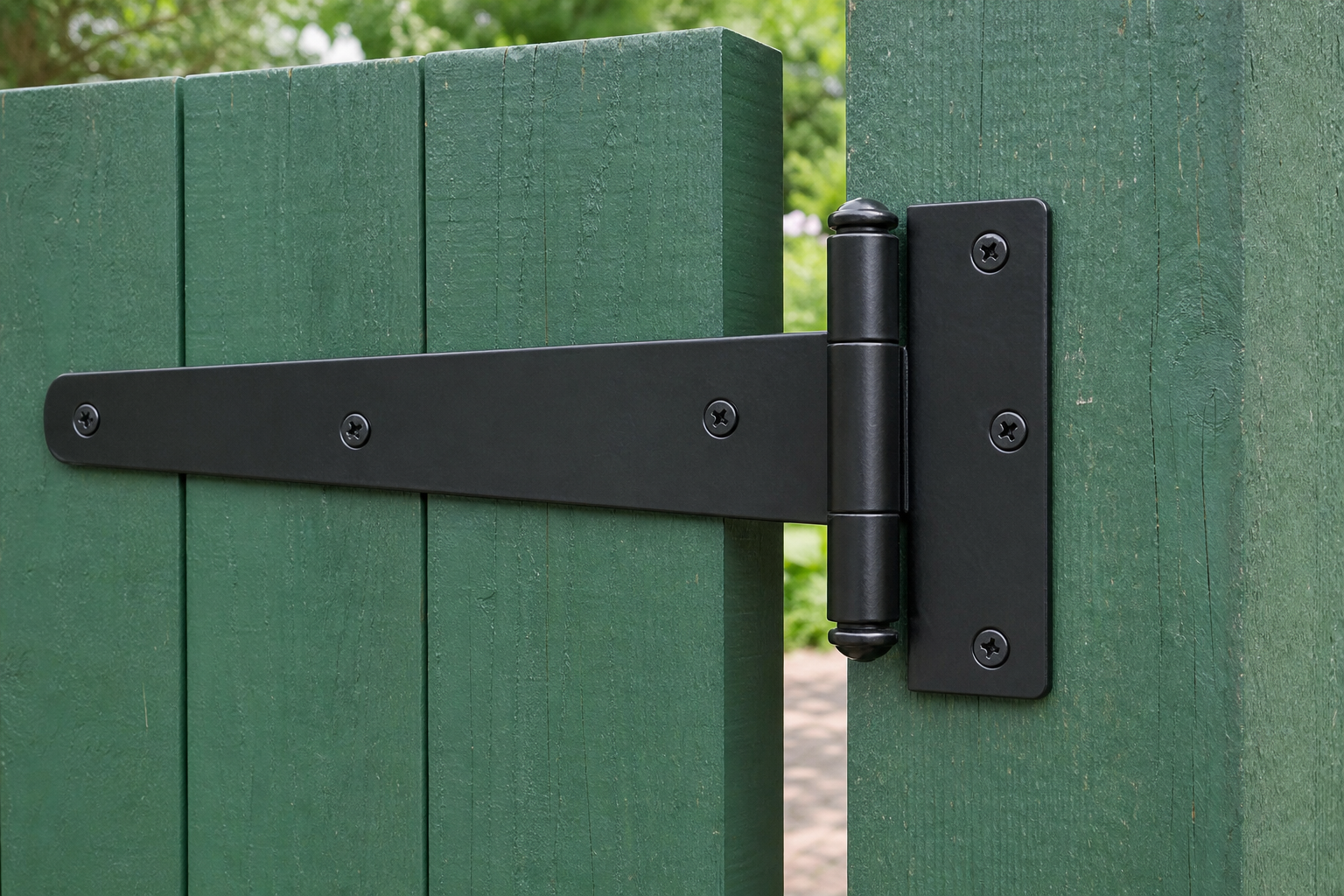

  • Formed T-hinges for garden gates, side gates and light commercial doors.
  • Fixed centres with pre-drilled holes for fast on-site installation.
  • Light, medium and heavy duty sizes from 100 mm to 400 mm.
  • Supplied zinc plated, galvanised or black powder coated.

Applications

  • Garden and pedestrian side gates
  • Pool and courtyard enclosures
  • Light warehouse and store doors

Typical sizes

  • Light duty: 100–150 mm
  • Medium duty: 200–250 mm
  • Heavy duty: 300–400 mm
Zinc plated Black PC Galvanised

Fixing: Supplied with screws or bolts to suit timber or metal posts. Popular sizes held for same-day dispatch.

Spring hinge on pool gate Weld-on security hinge
T-hinge close-up Strap hinge detail
Pivot hardware Galvanised hinge detail
Strap hinge installation Trade hinge hardware

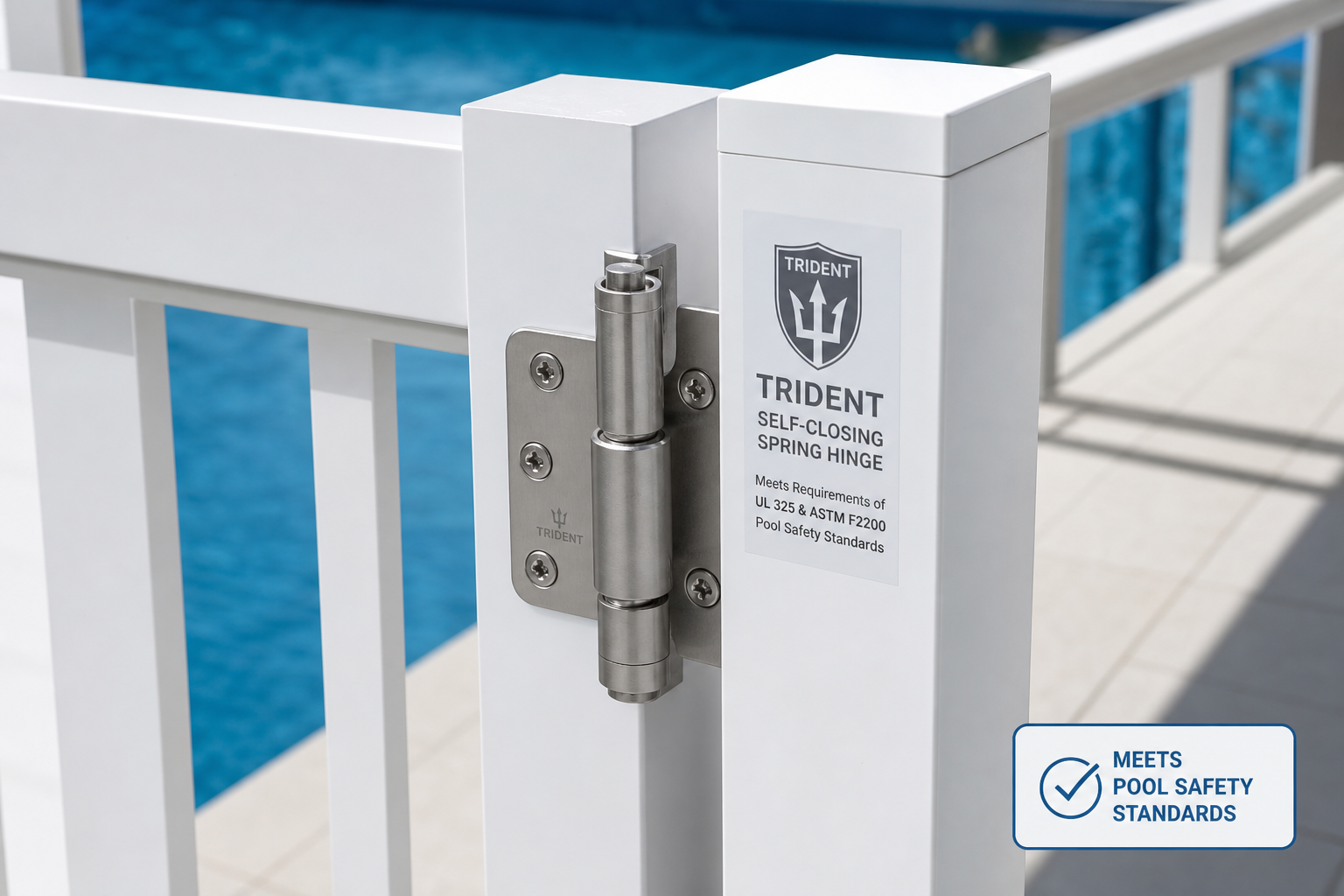

  • Self-closing spring hinges for gates and doors that must shut automatically.
  • Adjustable tension to set closing speed and force on site.
  • Ideal for pool enclosures, childcare areas and safety gates.
  • Single and double-action options in zinc, stainless and black PC.

Features

  • Adjustable closing force on site
  • Single and double-action variants
  • Compatible with timber and metal frames

Typical sizes

  • 75 mm — light pedestrian gates
  • 100–125 mm — standard pool gates
  • 150 mm — heavier metal gates
Zinc plated Stainless Black PC

Compliance: Suitable for pool and safety gate installations where self-closing hardware is required. Confirm local regulations with your specifier.

Weld-on security hinge Strap hinge
Pivot bearing set Installed gate hinge
Formed T-hinge Galvanised hinge detail
Auto-close spring hinge Trade hinge hardware

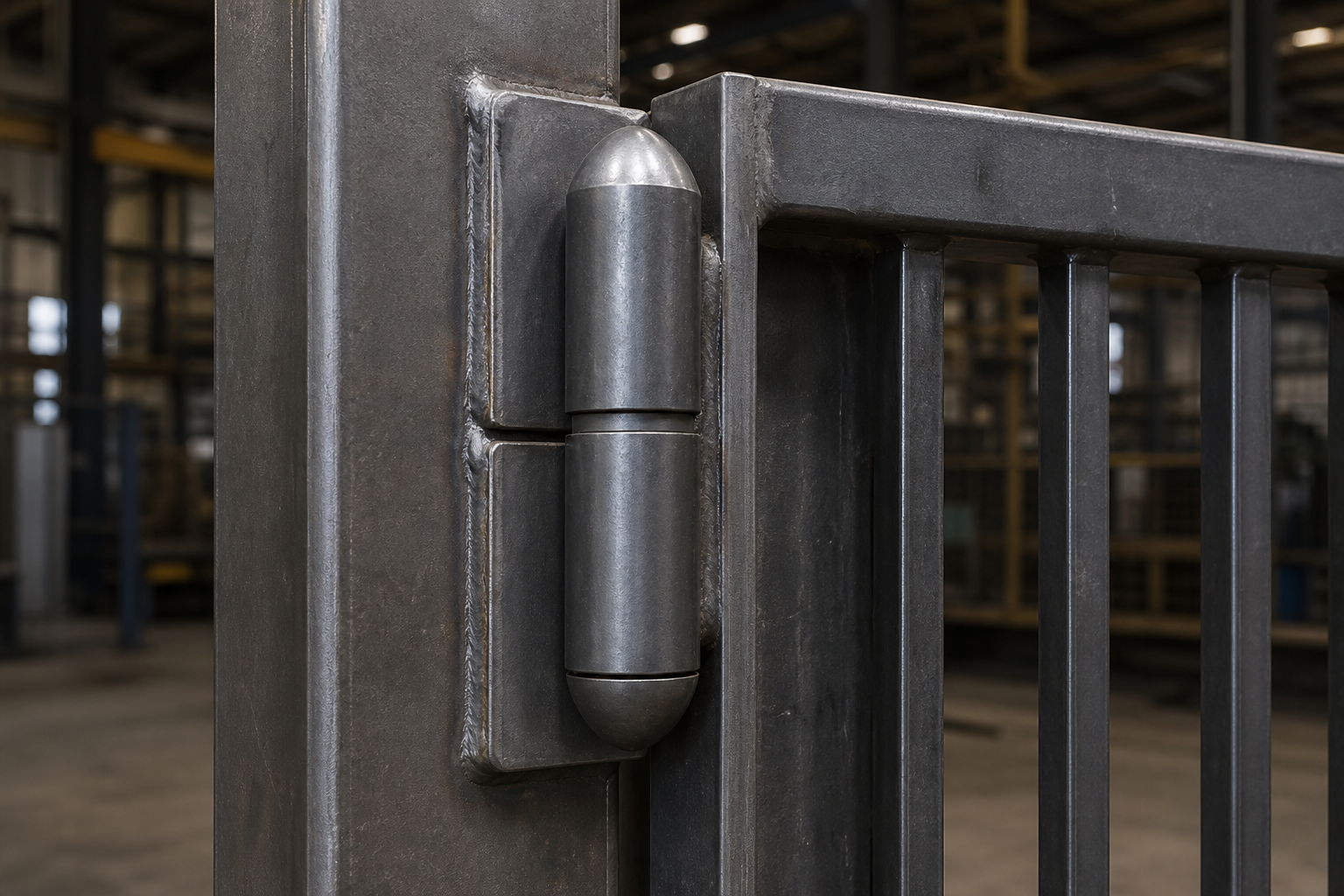

  • Heavy-duty weld-on hinges for fabricated metal gates and security doors.
  • Tamper-resistant design — pin cannot be removed from outside when welded.
  • Bullet, flag and barrel types for pedestrian and vehicle gates.
  • Rated for high-traffic commercial and industrial entrances.

Types available

  • Bullet hinges — flush weld-on barrel
  • Flag hinges — lift-off for maintenance
  • Heavy barrel with grease nipple option

Load ratings

  • Medium duty — pedestrian & light vehicle
  • Heavy duty — industrial & commercial
  • Custom bore and pin lengths on request
Self-colour steel Hot-dip galvanised Painted

Fabrication: Supplied ready to weld. We can match pin diameter and barrel length to your gate frame drawing.

Top and bottom pivot set T-hinge hardware
Weld-on barrel hinge Timber door hinge
Self-closing hinge Galvanised hinge detail
Decorative strap hinge Trade hinge hardware

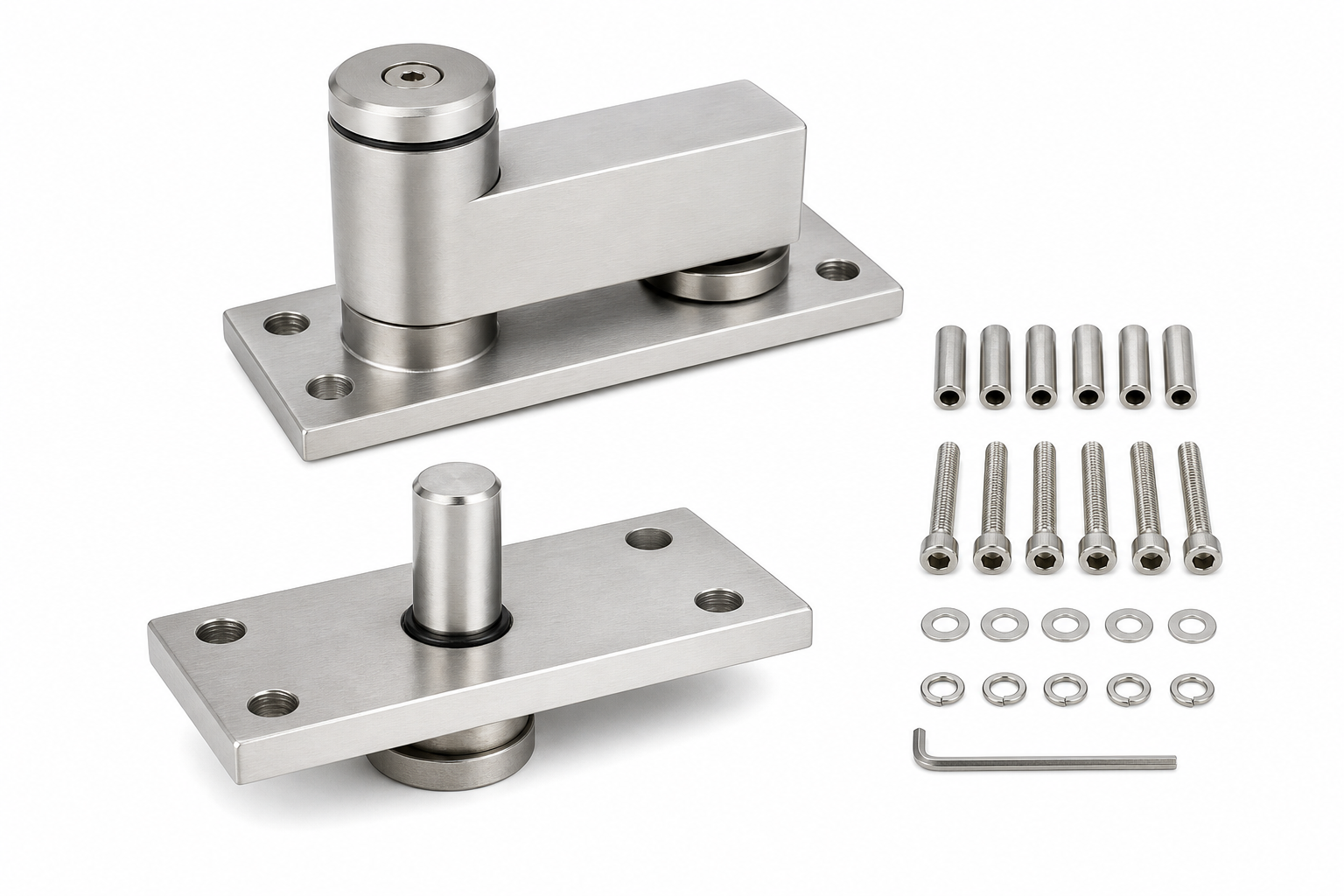

  • Top-and-bottom pivot sets for smooth, controlled gate movement.
  • Adjustable on site for plumb alignment and correct swing arc.
  • Suitable for architectural metal gates and high-frequency use.
  • Load-rated sets available for gates up to 120 kg.

Applications

  • Architectural metal and timber gates
  • High-frequency commercial entrances
  • Automated gate systems (manual pivot set)

Set includes

  • Top pivot with adjustment
  • Bottom bearing pivot
  • Fixing plates for post or ground box
Stainless 304 Zinc plated Black PC

Support: Load-rated options available for gates up to 120 kg. Send gate weight and dimensions for a recommended pivot set.

Need a trade quote or pack breakdown?

Send gate dimensions, finish preference and quantity — we respond with stock availability and pricing.

Enquire about stock & pricing
